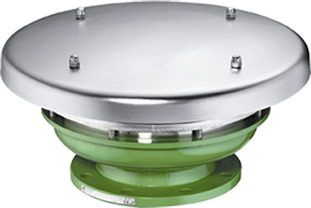

End-of-line Deflagration
Standard features:
- Flame arresters are used as secondary protection against explosions by preventing the transmission of flame and explosion transfer in machines, equipment and plant, containing inflammable gas or steam-air mixtures of inflammable liquids.
- These autonomous safety systems limit the effects of the explosions, rendering them harmless, they are intended to allow flow but prevent flame transmission
Product Offerings
Model 934-BE
End-of-Line Deflagration Flame Arrester
Short time burning options available
EC prototype test certificate according to ATEX Directive
2014/34/EU and EN ISO 16852:2016
Available in nom. Diameter: DN25 (1”) – DN400 (16”)
Model 934-BM
Protection against atmospheric deflagration and endurance burning
Endurance burning protection for hydrocarbons and alcohols up to
and including explosion group IIB
Type-approved in accordance with ATEX Directive 2014/34/EU and EN
ISO 16852:2016
Certified to IMO MSC/Circular 677 & 1009 (as amended by IMO
MSC.1/Circular 1324 & 1325)
Available in nominal sizes DN40 (1.5”) to DN 80 (3”)
The standard design can be used for operating temperatures up to
+60°C / 140°F
Model 934-BP
Protection against atmospheric deflagration and endurance burning
Type-approved in accordance with ATEX Directive 2014/34/EU and EN
ISO 16852:2016
Certified to IMO MSC/Circular 677 & 1009 (as amended by IMO
MSC.1/Circular 1324 & 1325)
Available in nominal sizes DN40 (1.5”) to DN 80 (3”)
The standard design can be used for operating temperatures up to
+60°C / 140°F
Model 934-BPE
End-of-Line Deflagration Flame Arrester
Short time burning options available
EC prototype test certificate according to ATEX Directive
2014/34/EU and EN ISO 16852:2016
Available in nom. Diameter: DN25 (1”) – DN400 (16”)
Model 934-BPT
End-of-Line Deflagration Flame Arrester
Short time burning options available
EC prototype test certificate according to ATEX Directive
2014/34/EU and EN ISO 16852:2016
Available in nom. Diameter: DN25 (1”) – DN400 (16”)
Model 934-BT
End-of-Line Deflagration Flame Arrester
Short time burning options available
EC prototype test certificate according to ATEX Directive
2014/34/EU and EN ISO 16852:2016
Available in nom. Diameter: DN25 (1”) – DN400 (16”)
